Library documentation tool (Libdoc)

Libdoc is Robot Framework's built-in tool that can generate documentation for Robot Framework libraries and resource files. It can generate HTML and Markdown documentation for humans as well as machine readable spec files in XML and JSON formats. Libdoc also has few special commands to show library or resource information on the console.

Documentation can be created for:

Additionally it is possible to use XML and JSON spec files created by Libdoc earlier as an input.

Note

Support for generating documentation for suite files and suite initialization files is new in Robot Framework 6.0.

General usage

Synopsis

1
2
libdoc [options] library_or_resource output_file
libdoc [options] library_or_resource list|show|version [names]

Options

-f, --format <html|xml|json|libspec|markdown>
Specifies whether to generate an HTML output for humans, a machine readable spec file in XML or JSON format, or a Markdown file. The libspec format means XML spec with documentations converted to HTML. The default format is got from the output file extension. The markdown format is new in Robot Framework 7.5.
-s, --specdocformat <raw|html>
Specifies the documentation format used with XML and JSON spec files. raw means preserving the original documentation format and html means converting documentation to HTML. The default is raw with XML spec files and html with JSON specs and when using the special libspec format. Not applicable with html or markdown outputs.
-F, --docformat <robot|markdown|html|text|rest>
Specifies the source documentation format. Possible values are Robot Framework's documentation format, Markdown, HTML, plain text, and reStructuredText. Default value can be specified in test library source code and the initial default value is robot. Markdown support is new in Robot Framework 7.5.
--theme <dark|light|none>
Use dark or light HTML theme. If this option is not used, or the value is none, the theme is selected based on the browser color scheme. Only applicable with HTML outputs. New in Robot Framework 6.0.
--language <lang>
Set the default language in documentation. lang must be a code of a built-in language, which are en and fi. Only applicable with HTML outputs. New in Robot Framework 7.2.

-N, --name <newname>
Sets the name of the documented library or resource.

-V, --version <newversion>
Sets the version of the documented library or resource. The default value for test libraries is defined in the source code.

-P, --pythonpath <path>
Additional locations where to search for libraries and resources similarly as when running tests.

--quiet
Do not print the path of the generated output file to the console.

-h, --help
Prints this help.

Executing Libdoc

The easiest way to run Libdoc is using the libdoc command created as part of the normal installation:

1
libdoc ExampleLibrary ExampleLibrary.html

Alternatively it is possible to execute the robot.libdoc module directly. This approach is especially useful if you have installed Robot Framework using multiple Python versions and want to use a specific version with Libdoc:

1
2
python -m robot.libdoc ExampleLibrary ExampleLibrary.html
python3.9 -m robot.libdoc ExampleLibrary ExampleLibrary.html

Yet another alternative is running the robot.libdoc module as a script:

1
python path/to/robot/libdoc.py ExampleLibrary ExampleLibrary.html

Note

The separate libdoc command is new in Robot Framework 4.0.

Specifying library or resource file

Python libraries and dynamic libraries with name or path

When documenting libraries implemented with Python or that use the dynamic library API, it is possible to specify the library either by using just the library name or path to the library source code:

1
2
libdoc ExampleLibrary ExampleLibrary.html
libdoc src/ExampleLibrary.py docs/ExampleLibrary.html

In the former case the library is searched using the module search path and its name must be in the same format as when importing libraries in Robot Framework test data.

If these libraries require arguments when they are imported, the arguments must be catenated with the library name or path using two colons like MyLibrary::arg1::arg2. If arguments change what keywords the library provides or otherwise alter its documentation, it might be a good idea to use --name option to also change the library name accordingly.

Resource files with path

Resource files must always be specified using a path:

1
libdoc example.resource example.html

If the path does not exist, resource files are also searched from all directories in the module search path similarly as when executing test cases.

Libdoc spec files

Earlier generated Libdoc XML or JSON spec files can also be used as inputs. This works if spec files use either *.xml, *.libspec or *.json extension:

1
2
3
libdoc Example.xml Example.html
libdoc Example.libspec Example.html
libdoc Example.json Example.html

Note

Support for the *.libspec extension is new in Robot Framework 3.2.

Note

Support for the *.json extension is new in Robot Framework 4.0.

Generating documentation

Libdoc can generate documentation in HTML, Markdown, XML or JSON formats. The file where to write the documentation is specified as the second argument after the library/resource name or path, and the output format is got from the output file extension by default.

Libdoc HTML documentation

Most Robot Framework libraries use Libdoc to generate library documentation in HTML format. This format is thus familiar for most people who have used Robot Framework. A simple example can be seen below, and it has been generated based on the example found a bit later in this section.

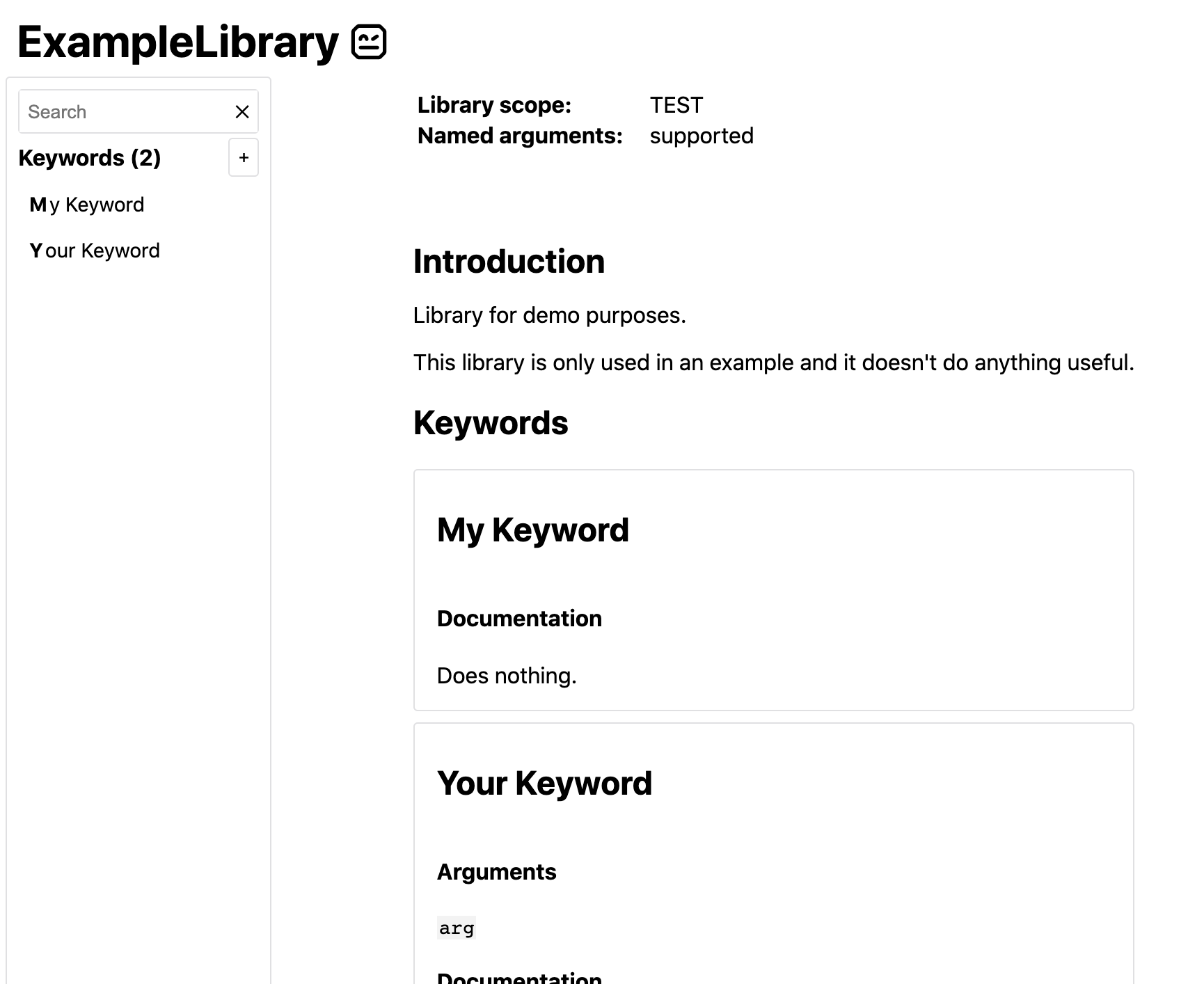

Figure

The HTML documentation starts with general library introduction, continues with a section about configuring the library when it is imported (when applicable), and finally has shortcuts to all keywords and the keywords themselves. The magnifying glass icon on the lower right corner opens the keyword search dialog that can also be opened by simply pressing the s key.

Libdoc automatically creates HTML documentation if the output file extension is *.html. If there is a need to use some other extension, the format can be specified explicitly with the --format option.

Starting from Robot Framework 7.2, it is possible to localise the static texts in the HTML documentation by using the --language option.

See the README.rst file in src/web/libodc directory in the project repository for up to date information about how to add new languages for the localisation.

1
2
3
libdoc OperatingSystem OperatingSystem.html
libdoc --name MyLibrary Remote::http://10.0.0.42:8270 MyLibrary.html
libdoc --format HTML test/resource.robot doc/resource.htm

Libdoc XML spec files

Libdoc can also generate documentation in XML format that is suitable for external tools such as editors. It contains all the same information as the HTML format but in a machine readable format.

XML spec files also contain library and keyword source information so that the library and each keyword can have source path (source attribute) and line number (lineno attribute). The source path is relative to the directory where the spec file is generated thus does not refer to a correct file if the spec is moved. The source path is omitted with keywords if it is the same as with the library, and both the source path and the line number are omitted if getting them from the library fails for whatever reason.

Libdoc automatically uses the XML format if the output file extension is *.xml or *.libspec. When using the special *.libspec extension, Libdoc automatically enables the options -f XML -s HTML which means creating an XML output file where keyword documentation is converted to HTML. If needed, the format can be explicitly set with the --format option.

1
2
3
4
libdoc OperatingSystem OperatingSystem.xml
libdoc test/resource.robot doc/resource.libspec
libdoc --format xml MyLibrary MyLibrary.spec
libdoc --format xml -s html MyLibrary MyLibrary.xml

The exact Libdoc spec file format is documented with an XML schema (XSD) at https://github.com/robotframework/robotframework/tree/master/doc/schema. The spec file format may change between Robot Framework major releases.

To make it easier for external tools to know how to parse a certain spec file, the spec file root element has a dedicated specversion attribute. It was added in Robot Framework 3.2 with value 2 and earlier spec files can be considered to have version 1. The spec version will be incremented in the future if and when changes are made. Robot Framework 4.0 introduced new spec version 3 which is incompatible with earlier versions.

Note

The XML:HTML format introduced in Robot Framework 3.2. has been replaced by the format LIBSPEC ot the option combination --format XML --specdocformat HTML.

Note

Including source information and spec version are new in Robot Framework 3.2.

Libdoc JSON spec files

Since Robot Framework 4.0 Libdoc can also generate documentation in JSON format that is suitable for external tools such as editors or web pages. It contains all the same information as the HTML format but in a machine readable format.

Similar to XML spec files the JSON spec files contain all information and can also be used as input to Libdoc. From that format any other output format can be created. By default the library documentation strings are converted to HTML format within the JSON output file.

The exact JSON spec file format is documented with an JSON schema at https://github.com/robotframework/robotframework/tree/master/doc/schema. The spec file format may change between Robot Framework major releases.

Libdoc Markdown documentation

Starting from Robot Framework 7.5, Libdoc can also write documentation into a Markdown file. Markdown files are human readable plain text files, but they can also be converted to HTML or otherwise processed by external tools.

Libdoc automatically uses the Markdown format if the output file extension is *.md. The format can also be set explicitly with the --format option:

1
2
3
libdoc OperatingSystem OperatingSystem.md
libdoc test/resource.robot doc/resource.md
libdoc --format markdown MyLibrary MyLibrary.markdown

Documentation is taken from the library or resource as-is without converting it to any other format. The result is thus proper Markdown only if the library uses the Markdown documentation syntax itself.

The --specdocformat, --theme and --language options are not applicable with Markdown outputs.

Note

The Markdown output format is not guaranteed to stay stable between Robot Framework versions. If you need a stable, machine readable format, use Libdoc spec files instead.

Viewing information on console

Libdoc has three special commands to show information on the console. These commands are used instead of the name of the output file, and they can also take additional arguments.

list
List names of the keywords the library/resource contains. Can be limited to show only certain keywords by passing optional patterns as arguments. Keyword is listed if its name contains given pattern.

show
Show library/resource documentation. Can be limited to show only certain keywords by passing names as arguments. Keyword is shown if its name matches any given name. Special argument intro will show only the library introduction and importing sections.

version
Show library version

Optional patterns given to list and show are case and space insensitive. Both also accept * and ? as wildcards.

Examples:

1
2
3
4
5
6
libdoc Dialogs list
libdoc SeleniumLibrary list browser
libdoc Remote::10.0.0.42:8270 show
libdoc Dialogs show PauseExecution execute*
libdoc SeleniumLibrary show intro
libdoc SeleniumLibrary version

When showing documentation of a whole library or some keywords, the overall structure is formatted using Markdown. This is the same formatting that is used with Libdoc Markdown documentation outputs. It is especially convenient with libraries that use Markdown documentation syntax themselves, because then the whole output is in Markdown format. This is demonstrated by the following example from the beginning of the Dialogs library documentation:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
# Dialogs

* Version: 7.5
* Scope: GLOBAL

## Introduction

A library providing dialogs for interacting with users.

`Dialogs` is Robot Framework's standard library that provides means
for pausing the test or task execution and getting input from users.

Long lines in the provided messages are wrapped automatically. If you want
to wrap lines manually, you can add newlines using the `\n` character sequence.

## Keywords

### Execute Manual Step

#### Arguments

* `message` (type: `str`) -
  The instruction shown in the initial dialog.
* `default_error` (type: `str`, default: ``) -
  The default value shown in the possible error message dialog.

#### Documentation

Pauses execution until user sets the keyword status.

User can press either `PASS` or `FAIL` button. In the latter case execution
fails and an additional dialog is opened for defining the error message.

Note

Prior to Robot Framework 7.5 console output used custom formatting.

Note

The console output format is not guaranteed to stay stable between Robot Framework versions. If you need a stable, machine readable format, use Libdoc spec files instead. If you want to save the documentation in this format, use Libdoc Markdown documentation outputs.

Writing documentation

This section discusses writing documentation for Python based test libraries that use the static library API as well as for dynamic libraries and resource files. Creating test libraries and resource files is described in more details elsewhere in the User Guide.

Python libraries

The documentation for Python libraries that use the static library API is written simply as doc strings for the library class or module and for methods implementing keywords. The first line of the method documentation is considered as a short documentation for the keyword (used, for example, as a tool tip in links in the generated HTML documentation), and it should thus be as describing as possible, but not too long.

The simple example below illustrates how to write the documentation in general. How the HTML documentation generated based on this example looks like can be seen above, and there are also bit longer examples at the end of this chapter.

1
src/SupportingTools/ExampleLibrary.py

Tip

If you library does some initialization work that should not be done when using Libdoc, you can easily detect is Robot Framework running

Tip

For more information on Python documentation strings, see PEP-257.

Dynamic libraries

To be able to generate meaningful documentation for dynamic libraries, the libraries must return keyword argument names and documentation using get_keyword_arguments and get_keyword_documentation methods (or using their camelCase variants getKeywordArguments and getKeywordDocumentation). Libraries can also support general library documentation via special __intro__ and __init__ values to the get_keyword_documentation method.

See the Dynamic library API section for more information about how to create these methods.

Importing section

A separate section about how the library is imported is created based on its initialization methods. If the library has an __init__ method that takes arguments in addition to self, its documentation and arguments are shown.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
class TestLibrary:

    def __init__(self, mode='default')
        """Creates new TestLibrary. `mode` argument is used to determine mode."""
        self.mode = mode

    def some_keyword(self, arg):
        """Does something based on given `arg`.

        What is done depends on the `mode` specified when `importing` the library.
        """
        if self.mode == 'secret':
             # ...

Resource file documentation

Keywords in resource files can have documentation using [Documentation] setting, and this documentation is also used by Libdoc. First line of the documentation (until the first implicit newline or explicit \n) is considered to be the short documentation similarly as with test libraries.

Also the resource file itself can have Documentation in the Setting section for documenting the whole resource file.

Possible variables in resource files can not be documented.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
*** Settings ***
Documentation    Resource file for demo purposes.
...              This resource is only used in an example and it doesn't do anything useful.

*** Keywords ***
My Keyword
    [Documentation]   Does nothing
    No Operation

Your Keyword
    [Arguments]  ${arg}
    [Documentation]   Takes one argument and *does nothing* with it.
    ...
    ...    Examples:
    ...    | Your Keyword | xxx |
    ...    | Your Keyword | yyy |
    No Operation

Documentation syntax

Libdoc supports documentation in Robot Framework's own documentation syntax, Markdown, reStructuredText, HTML and plain text. The format to use can be specified in library source code using the ROBOT_LIBRARY_DOC_FORMAT attribute or the @library decorator, or given from the command line using the --docformat (-F) option. In all cases the possible case-insensitive values are ROBOT (default), MARKDOWN, reST, HTML and TEXT.

Robot Framework documentation syntax

Robot Framework's own documentation syntax is thoroughly documented in the Robot Framework format appendix. Its most important features are formatting using *bold* and _italics_, custom links and automatic conversion of URLs to links, and the possibility to create tables and pre-formatted text blocks (useful for examples). If documentation gets longer, support for section titles can be handy as well.

Some of the most important formatting features are illustrated in this example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
"""Example library in Robot Framework format.

- Formatting with *bold* and _italics_.
- URLs like http://example.com are turned to links.
- Custom links like [http://robotframework.org|Robot Framework] are supported.
- Linking to `My Keyword` works.
"""

def my_keyword():
    """Nothing more to see here."""

Notice that because this is the default documentation format, there is no need to use the ROBOT_LIBRARY_DOC_FORMAT attribute nor give the format from the command line. It is possible that the default format is changed to Markdown in the future, though, so explicitly specifying the format may be a good idea also in this case.

Creating table of contents

With bigger libraries it is often useful to add a table of contents to the library introduction. When using the Robot Framework documentation format, this can be done automatically by adding a special %TOC% marker into its own line so that it forms its own paragraph. The table of contents is created based on the first and second level section headers (e.g. = Section =, == Level 2 ==) used in the introduction.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
"""Example library demonstrating TOC generation.

The %TOC% marker only creates the actual table of contents. If it needs
its own header or other explanation, that needs to be added separately.

== Table of contents ==

%TOC%

= Section header =

This header is included in TOC:

= Second section =

Also this header is included.

== Second level ==

Second level headers are included as well

=== Third level ===

Third level headers are not included.
"""

def my_keyword():
    """Nothing more to see here."""

Note

Generating table of contents is a special feature in Libdoc. It is not supported in other places where the Robot Framework documentation format can be used.

Note

Including first and second level headers in the table of contents is new in Robot Framework 7.5. With earlier versions only the top level headers were included.

Note

Prior to Robot Framework 7.5, the table of contents included links to the Keywords and Importing sections automatically.

Markdown documentation syntax

Markdown is a lightweight plain text markup syntax that is widely used for documentation, README files, and technical content across the software development industry. There are various slightly different Markdown flavors, but the basic syntax works the same way across all tools. The following example illustrates the most important features, and details about the supported syntax can be from the Markdown format appendix.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
"""Example library using Markdown format.

- Formatting with **bold** and *italics*.
- URLs like http://example.com are turned to links.
- Normal Markdown [inline](http://example.com) and [reference] links are supported.
- Keywords like [My Keyword] are linkable reference targets automatically.
- Code blocks with syntax highlighting are supported.

[reference]: http://example.com "An example"

```robotframework
*** Test Cases ***
Example
    My Keyword    # How cool is this!!?!!?!1!!
```
"""
ROBOT_LIBRARY_DOC_FORMAT = 'Markdown'

def my_keyword():
    """Nothing more to see here."""

Robot Framework uses the Python-Markdown module as its underling Markdown engine and it needs to be installed separately. If syntax highlighting is needed, the Pygments module must be installed as well.

All other documentation formats supported by Libdoc support internal linking using backticks like Linking to `My Keyword` works. This kind of linking is very convenient and it works also with Markdown, but standard Markdown reference links like Linking to [My Keyword] works are used instead.

When using Markdown, it is possible to generate table of contents using the same %TOC% marker that is supported when creating table of contents using Robot Framework format.

Note

Markdown support is new in Robot Framework 7.5.

reStructuredText documentation syntax

reStructuredText is simple yet powerful markup syntax used widely in Python projects (including this User Guide) and elsewhere. The main limitation is that you need to have the docutils module installed to be able to generate documentation using it. Because backtick characters have special meaning in reStructuredText, linking to keywords requires them to be escaped like \`My Keyword\`.

One of the nice features that reStructured supports is the ability to mark code blocks that can be syntax highlighted. Syntax highlight requires additional Pygments module and supports all the languages that Pygments supports.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
"""Example library using reStructuredText format.

- Formatting with **bold** and *italics*.
- URLs like http://example.com are turned to links.
- Custom links like reStructuredText__ are supported.
- Linking to \`My Keyword\` works but requires backticks to be escaped.

.. code:: robotframework

    *** Test Cases ***
    Example
        My Keyword    # How cool is this!!?!!?!1!!
"""
ROBOT_LIBRARY_DOC_FORMAT = 'reST'

def my_keyword():
    """Nothing more to see here."""

HTML documentation syntax

When using HTML format, you can create documentation pretty much freely using any syntax. The main drawback is that HTML markup is not that human friendly, and that can make the documentation in the source code hard to maintain and read. Documentation in HTML format is used by Libdoc directly without any transformation or escaping. The special syntax for linking to keywords using syntax like `My Keyword` is supported, however.

Example below contains the same formatting examples as the previous example. Now ROBOT_LIBRARY_DOC_FORMAT attribute must be used or format given on the command line like --docformat HTML.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
"""Example library using HTML format.

<ul>
  <li>Formatting with <b>bold</b> and <i>italics</i>.
  <li>URLs are not turned to links automatically.
  <li>Custom links like <a href="http://www.w3.org/html">HTML</a> are supported.
  <li>Linking to `My Keyword` works.
</ul>
"""
ROBOT_LIBRARY_DOC_FORMAT = 'HTML'

def my_keyword():
    """Nothing more to see here."""

Plain text documentation syntax

When the plain text format is used, Libdoc uses the documentation as-is. Newlines and other whitespace are preserved except for indentation, and HTML special characters (<>&) escaped. The only formatting done is turning URLs into clickable links and supporting internal linking like `My Keyword`.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
"""Example library using plain text format.

- Formatting is not supported.
- URLs like http://example.com are turned to links.
- Custom links are not supported.
- Linking to `My Keyword` works.
"""
ROBOT_LIBRARY_DOC_FORMAT = 'text'

def my_keyword():
    """Nothing more to see here."""

Internal linking

Libdoc supports internal linking to keywords, to used types and to different sections in the documentation.

The link syntax varies depending on the documentation format that is used. With Markdown linking is done using normal Markdown reference links like Linking to [target] and with all others the target needs to be surrounded with backtick characters like Linking to `target`. The actual targets are the same regardless the documentation format, though. Target matching is also always case, space and underscore insensitive.

In addition to the examples in the following sections, internal linking and argument formatting is shown also in longer examples at the end of this chapter.

Note

Most of the examples in this section use the backtick linking style like `target`. Examples can be converted to Markdown simply by changing links to [target].

Note

There is no error or warning if a link target is not found.

Linking to keywords

All keywords the library have automatically create link targets and they can be linked using syntax `Keyword Name`. This is illustrated with the example below where both keywords have links to each others.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
def keyword(log_level="INFO"):
    """Does something and logs the output using the given level.

    Valid values for log level` are "INFO" (default) "DEBUG" and "TRACE".

    See also `Another Keyword`.
    """
    # ...

def another_keyword(argument, log_level="INFO"):
    """Does something with the given argument else and logs the output.

    See `Keyword` for information about valid log levels.
    """
    # ...

Note

When using reStructuredText documentation syntax, backticks must be escaped like \`Keyword Name\`.

Linking to automatic sections

The documentation generated by Libdoc always contains sections for overall library introduction and for keywords. If a library itself takes arguments, there is also separate importing section.

All the sections act as targets that can be linked, and the possible target names are listed in the table below. Using these targets is shown in the example of the next section.

Section Target Name
Introduction introduction and library introduction
Importing importing and library importing
Keywords keywords

Linking to custom sections

Robot Framework's own documentation format and Markdown format both support section headers, and headers used in the library or resource file introduction automatically create link targets. The example below illustrates linking both to automatic and custom sections:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
"""Library for Libdoc demonstration purposes.

This library does not do anything useful.

= My section =

We do have a custom section in the documentation, though.
"""

def keyword():
    """Does nothing.

    See `introduction` for more information and `My section` to test how
    linking to custom sections works.
    """
    pass

Linking to types

Types that have been used with arguments or return values can be linked as well. This works with all types, but with custom types it is especially convenient to link to the types that may have useful documentation themselves.

1
2
3
def keyword(a: int, b: float):
    """This keyword gets `int` and `float` as arguments."""
    return a + b

Note

Prior to Robot Framework 7.5, the target name to use with some of the standard types was a generic name like integer and not the actually used type name.

Linking to custom references

With Markdown it is possible to create custom reference targets in library or resource file introduction and link to them in keywords.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
"""Library for Libdoc demonstration purposes.

This is an [example] link to a custom reference target.

[example]: http://example.com
"""
ROBOT_LIBRARY_DOC_FORMAT = "Markdown"

def keyword():
    """Does nothing.

    As this [example] demonstrates, linking to custom targets defined in
    the introduction works also in keyword documentation.
    """
    pass

Arguments, return values, exceptions and tags

Libdoc shows some information about arguments and return values automatically based on the source code. They, as well as possible exceptions, can also be documented using Google Style documentation conventions. Also tags can be listed in documentation similarly.

Note

Support to explicitly document arguments, return values and exceptions using the Google Style is new in Robot Framework 7.5.

Automatically included information

The following information is shown for all keywords regardless are they implemented using Robot Framework syntax or Python:

  • Argument names. User keyword arguments are shown without the ${} decoration to make arguments look the same regardless the keyword type.
  • Argument default values.
  • Argument types.
  • Return value types.

If a shown type is automatically converted, has a custom converter or is based on Enum or TypedDict, the type name becomes a link to further type documentation.

Documenting arguments

Robot Framework supports Google style argument documentation:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
def example(first: int, second: float, third: float) -> float:
    """Example keyword.

    Args:
        first: Documentation of the first argument.
        second: If documentation gets long, it can be split to multiple
            lines. Wrapped lines should be indented consistently.
        third:
            Documentation can also start on the next line.

                Extra indentation like this is preserved and can
                be used for formatting.

    Returns:
        The sum of the given arguments.

    Normal documentation continues.
    """
    return a + b

As the example above demonstrates, arguments are documented under the Args: header that must be followed with an indented block. The specification mandates that the indentation should be two or four spaces, but Robot Framework only requires that the indentation is at least two spaces and that it is consistent within a block.

Documentation of each argument starts with the argument name followed with a colon like name:. If the documentation follows on the same line, there must be at least one space after the colon like name: Documentation. Alternatively, the documentation can start on the next line like with the argument third in the above example. As the example also demonstrates, long lines can be wrapped and extra indentation is preserved.

The specification says that with *varargs and **kwargs the leading * and ** should be included, but with Robot Framework both including and excluding them is fine. When documenting user keyword arguments, it is possible to omit ${}, @{} and &{} decoration.

Possible argument types in the documentation like name (int): Example are totally ignored. If type information is important, it must be provided via type hints or by using the @keyword decorator so that it is available also during execution and can be used for argument conversion.

Robot Framework considers headers Arguments: and Parameters: to be aliases for Args:. They, similarly as aliases supported with other headers, may not be supported by other tools processing documentation, though.

Documenting return values

As the example in the previous section already demonstrated, return values can be documented under the Returns: header as an indented block. The block can span multiple lines and paragraphs and extra indentation is preserved:

1
2
3
4
5
6
Returns:
    Data as a dictionary in the following format:

        {"name": "Robot", "id": 42, "children": []}

    `children` is a list of dictionaries in the same format.

Robot Framework allows the documentation to start already on the header row as long as there is at least one space after the colon. This means that short return value documentation can be written on a single line like Returns: Some value.

Robot Framework recognizes header Return: as an alias for Returns:. It also considers Yields: as another alias instead of its own section type.

Documenting exceptions

Also raised exceptions can be documented. This is done under the Raises: header using ExceptionType: Documentation syntax that works the same way as the name: Documentation syntax with arguments:

1
2
3
4
Raises:
    ValueError: Input value could not be converted.
    IOError: Output file could not be accessed. Either it does not
        exist or the user does not have adequate permissions.

The Raise: header is considered an alias for Raises:.

Listing tags

User keywords support specifying tags using the [Tags] setting and library keywords support them via the @keyword decorator. With both kind of keywords it is also possible to list tags as part of the documentation. This is done under the Tags: header so that tags are separate with a comma:

1
2
Tags:
    first, second

The tags block must be indented similarly as other special documentation blocks. Listing tags on the same row as the header like Tags: first, second is also supported.

Note

Prior to Robot Framework 7.5, tags were only supported on the last row of the documentation.

Handling parsed information

All recognized sections are parsed and information they contain is added to Libdoc spec files and shown in Libdoc HTML UI separately. Recognized sections are also removed from the actual keyword documentation.

Possible unrecognized sections are left to the documentation without modification.

Supported formatting

There are some times needs to process keyword documentation also using other tools than Libdoc. Such tools can support Markdown or reStructuredText, but all tools do not understand Google style documentation conventions.

If the whole documentation is to be rendered as Markdown or reStructuredText, an empty line can be added after a block header to avoid the header and the following block to be rendered as a single paragraph:

1
2
3
4
5
Args:

    first: Documentation of the first argument.
    second: If documentation gets long, it can be split to multiple
        lines. Wrapped lines should be indented consistently.

The above is enough to get arguments rendered as a code block in Markdown. This syntax still would not work too well with reStructuredText, but Robot Framework allows headers to end with two colons like Args:: and then arguments would be rendered as a literal block-

An alternative to the above is using a list:

1
2
3
4
5
Args:

  - first: Documentation of the first argument.
  - second: If documentation gets long, it can be split to multiple
    lines. Wrapped lines should be indented consistently.

Robot Framework supports -, + and *, followed by a space, as list markers in this context. The whole list also needs to indented with two or more spaces the same way as other blocks.

Robot Framework also supports formatting section headers using the asterisk (*) and underscore (_) characters that are typically used for bold and italics in different documentation formats. The colon can be either inside or outside formatting so, for example, both *Args:* and *Args*: are supported.

Argument names can be formatted using the backtick character (`) that is typically used for inline code. It is possible to use both single backticks like `name` and double backticks like ``name``. In this case the colon must not be formatted, so only something like `name`: Documentation is supported.

Possible header and argument name formatting is totally ignored by Robot Framework and thus has an effect only if the documentation is processed using other tools. Actual argument, return value and exception documentation can also contain formatting and that is handled the same way as formatting elsewhere in the documentation.

Note

External tools that understand Google style documentation conventions may not accept extra formatting that Robot Framework supports. Test the used formatting with all the used tools if interoperability is important.

Libdoc examples

The following examples illustrates how to use the most important documentation formatting possibilities, internal linking, and so on.

Using Robot Framework format

1
src/SupportingTools/LoggingLibrary.py

Click here to see how the generated documentation looks like.

Using Markdown

1
src/SupportingTools/LoggingLibraryMarkdown.py

Click here to see how the generated documentation looks like.

Standard library documentation

All standard libraries have documentation generated by Libdoc and their documentation (and source code) act as a more realistic examples.
